Higher accuracy: 24-bit sampling
More parameter sets: 99 groups
More IO interfaces: 8 IN, 8 OUT

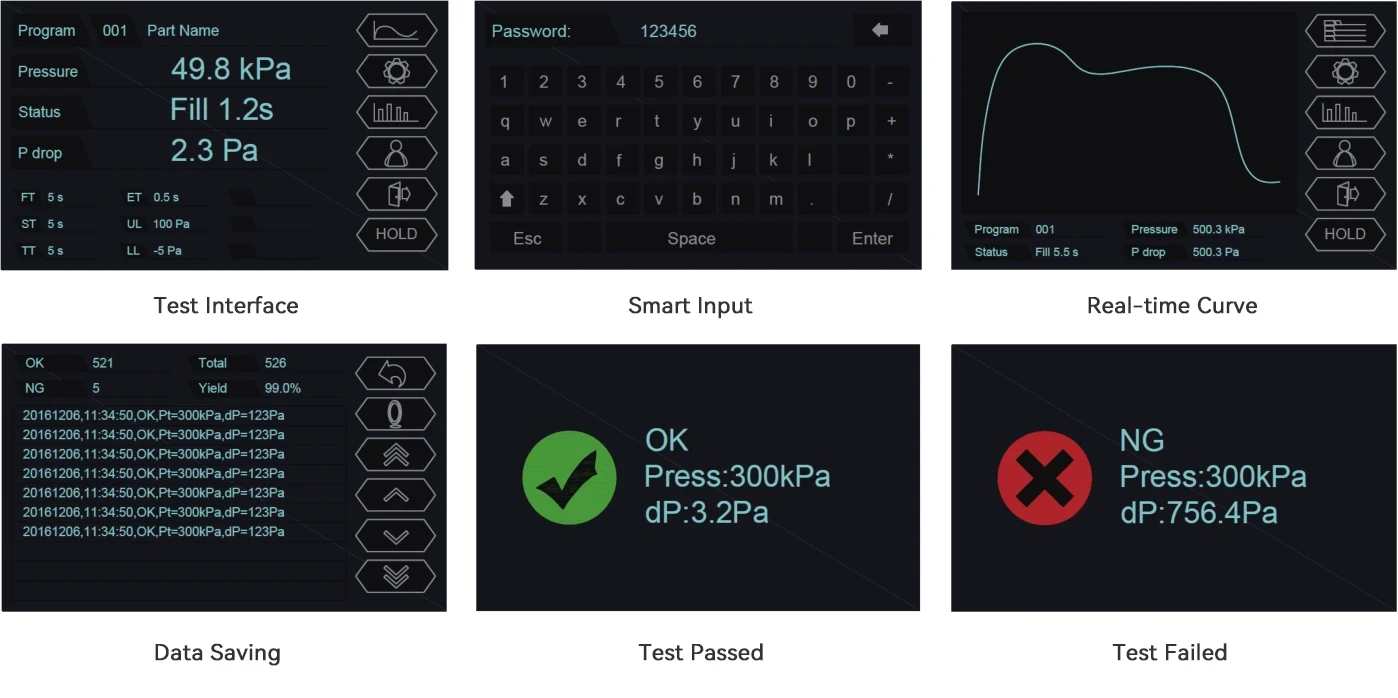

User-friendly interface: 5-inch colour touch screen
Convenient data export: RS232
Lower system cost: fixture control function
The X330 differential pressure leak detector is microcomputer controlled and combines advanced data acquisition and analysis technology with precision sensors. The test process is fully automatic and easy to operate. The instrument provides multiple communication interfaces for connecting PLCs, PCs and other host computers. A 5-inch colour touch screen makes parameter setting and test-record review easy.
| General | Power supply | 220 | V AC |
|---|---|---|---|
| Power consumption | 50 | W | |
| Air supply pressure | 0.4~0.7 | MPa | |
| Ambient temperature | 10～45 | °C | |
| Dimensions | 250*300*160 | mm | |
| Weight | 2.5 | kg | |
| Parameters | Test method | Differential pressure mode | |
| Test pressure (optional) | Negative pressure -3 to -90; positive pressure 3~50, 5-100, 8-500, 20-700, etc. | kPa | |
| Differential pressure range (optional) | ±500、±1000、±5000 | Pa | |
| Test time | 0～999.9 | s | |
| Pressure resolution | 0.01 | Pa | |
| Accuracy | 0.1% of the differential pressure sensor | ||
| Leak rate resolution | 0.01 | sccm | |
| Configuration | Pressure regulation | Manual regulation and electric pressure regulation (optional) | |
| Interfaces | RS232，I/O，TCP | ||
| Display | 5-inch colour touch screen | ||
| Parameter sets | 99 independent parameter sets | ||
| Data capacity | 8,000 test results | ||
| Fixture control | 2 | ||
| Air preparation | Filter included | ||
