Higher accuracy: 24-bit sampling
More parameter sets: 99 groups
Pressure regulation: automatic
User-friendly interface: colour touch screen
Convenient data export: RS232, TCP/IP
Lower system cost: 3 fixture control functions

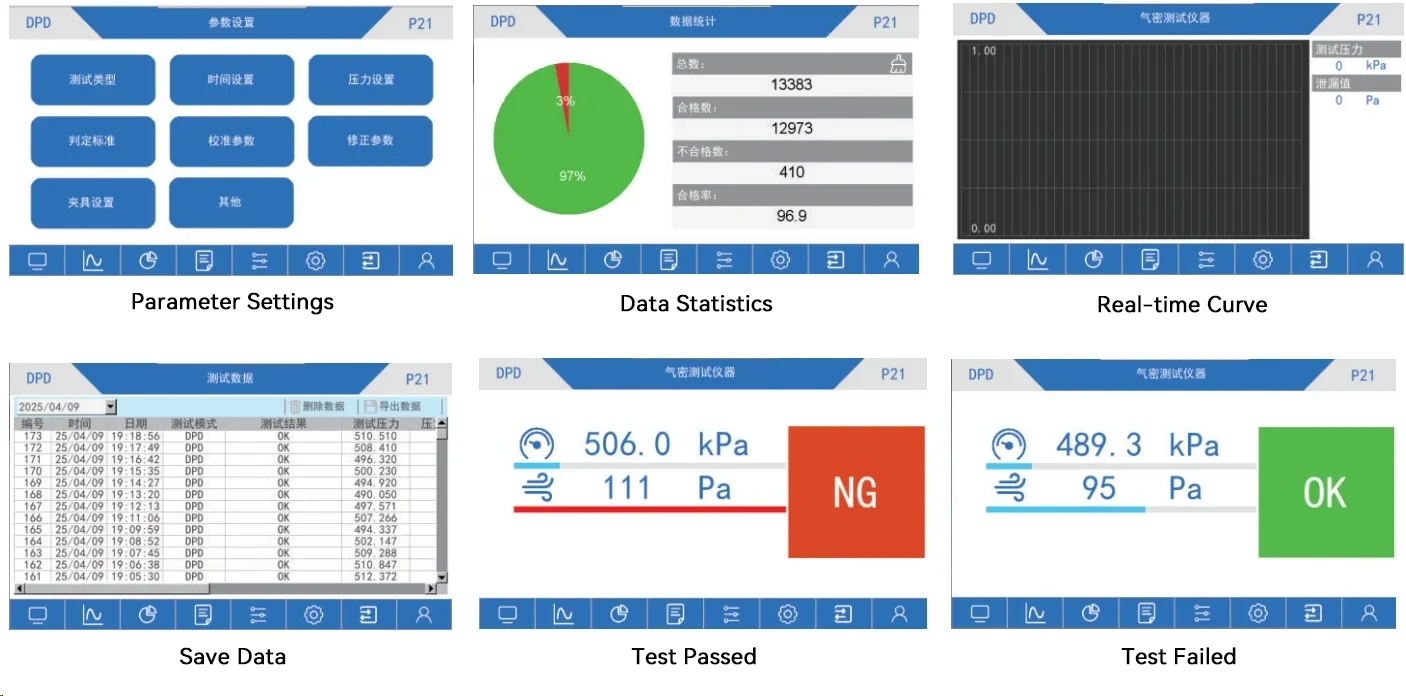

The MT100 automatic pressure-regulating high-pressure leak detector combines advanced data acquisition and analysis technology with precision sensors. The test process is fully automatic and easy to operate. The instrument provides multiple communication interfaces for connecting PLCs, PCs and other host computers. A colour touch screen makes parameter setting and test-record review easy. A CNAS certificate from the Guangzhou Institute of Measurement is available as an option.
| General | Power supply | 100～240 | V AC |
|---|---|---|---|
| Power consumption | 100 | W | |
| Air supply pressure | 3.5～4 | MPa | |
| Ambient temperature | -10～45 | °C | |
| Dimensions | 420*345*525 | mm | |
| Weight | 5 | kg | |
| Parameters | Test method (optional) | Differential pressure mode | |
| Test pressure | 0.2-2, 0.3-3, etc. | MPa | |
| Differential pressure range (optional) | ±1000；±5000 | Pa | |
| Test time | 0～9999.9 | s | |
| Pressure resolution | 0.1 | Pa | |
| Accuracy | 0.1% of the differential pressure sensor | ||
| Leak rate resolution | 0.01 | sccm | |
| Configuration | Pressure regulation (optional) | Manual regulation and electric pressure regulation | |
| Interfaces | RS232，I/O，TCP/IP | ||
| Display | 5-inch colour touch screen | ||
| Parameter sets | 99 independent parameter sets | ||
| Data capacity | 10,000 test results | ||
| Fixture control | 3 | ||
| Air preparation | Filter included | ||
