Higher accuracy: 24-bit sampling
More parameter sets: 99 groups

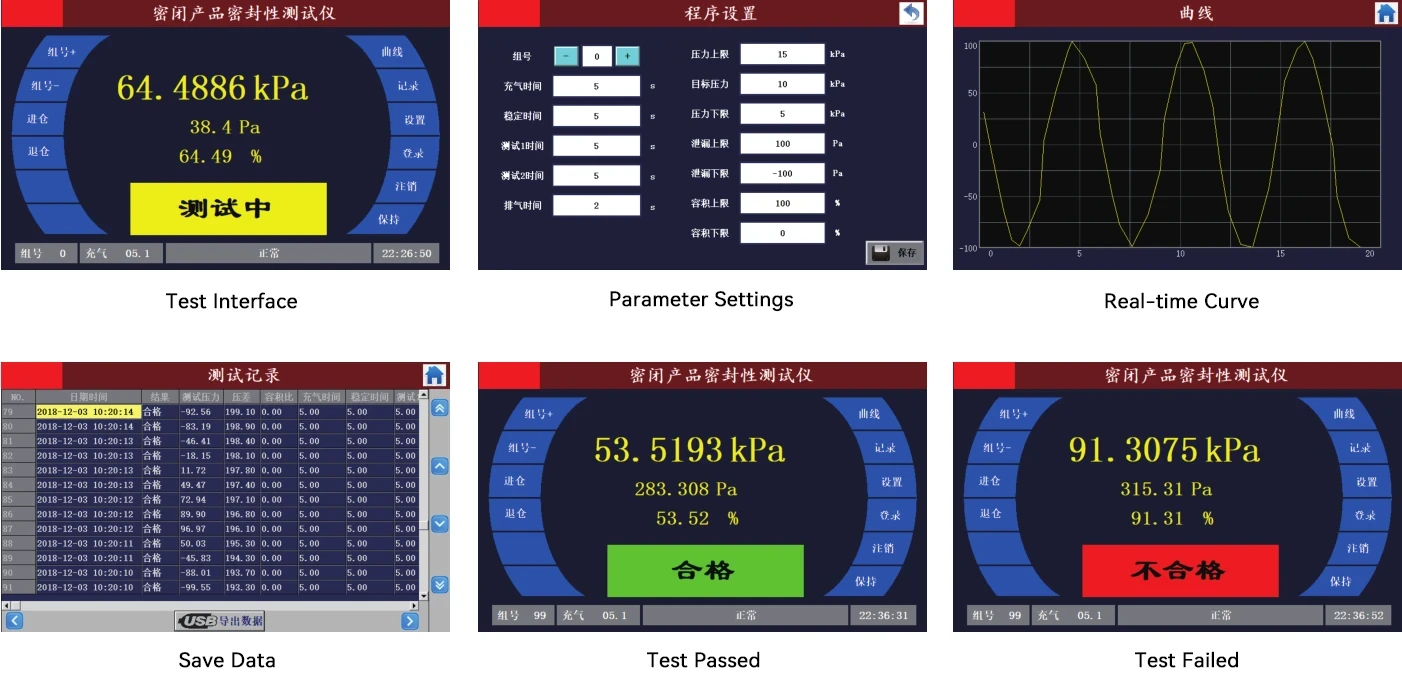

User-friendly interface: 7-inch colour touch screen
Convenient data export: RS232, USB
Strong networking: Modbus TCP
Reduce system costs: built-in sealing fixture
Large data capacity: 20,000 historical records
Data statistics: pass and fail counts
Dynamic pressure curve display
The X730 all-in-one leak detection system is microcomputer controlled and combines advanced data acquisition and analysis technology with precision sensors. The test process is fully automatic and easy to operate. The instrument provides multiple communication interfaces for connecting PLCs, PCs and other host computers. A 7-inch colour touch screen makes parameter setting and test-record review easy. The unit has a built-in sealing fixture, so the operator only needs to load the workpiece to complete the whole test, with no external fixture or control system required.
| General | Power supply | 220 | V AC |
|---|---|---|---|
| Power consumption | 50 | W | |
| Air supply pressure | 0.4~0.6 | MPa | |
| Ambient temperature | 10~45 | °C | |
| Dimensions | 240*390*420 | mm | |
| Weight | 20 | kg | |
| Parameters | Test method | Differential pressure decay + volume ratio | |
| Test pressure | -100~500 | kPa | |
| Test time | 0~999.9 | s | |
| Pressure resolution | 0.1 | Pa | |
| Pass / fail criterion | 0-999.9 | Pa | |
| Configuration | Pressure regulation | Manual regulation | |
| Interfaces | RS232, USB, IO, Ethernet | ||
| Display | 7-inch colour touch screen | ||
| Parameter sets | 99 independent parameter sets | ||
| Data capacity | 20,000 test results | ||
| Fixture control | Built-in fixture | ||
| Fixture dimensions | ≤150mm*150mm*40mm | ||
| Air preparation | Built-in filter | ||
